FLAT LO PROFILE SEQUENTIAL SIGNALS

  • Sale
  • Regular price $24.99
Shipping calculated at checkout.

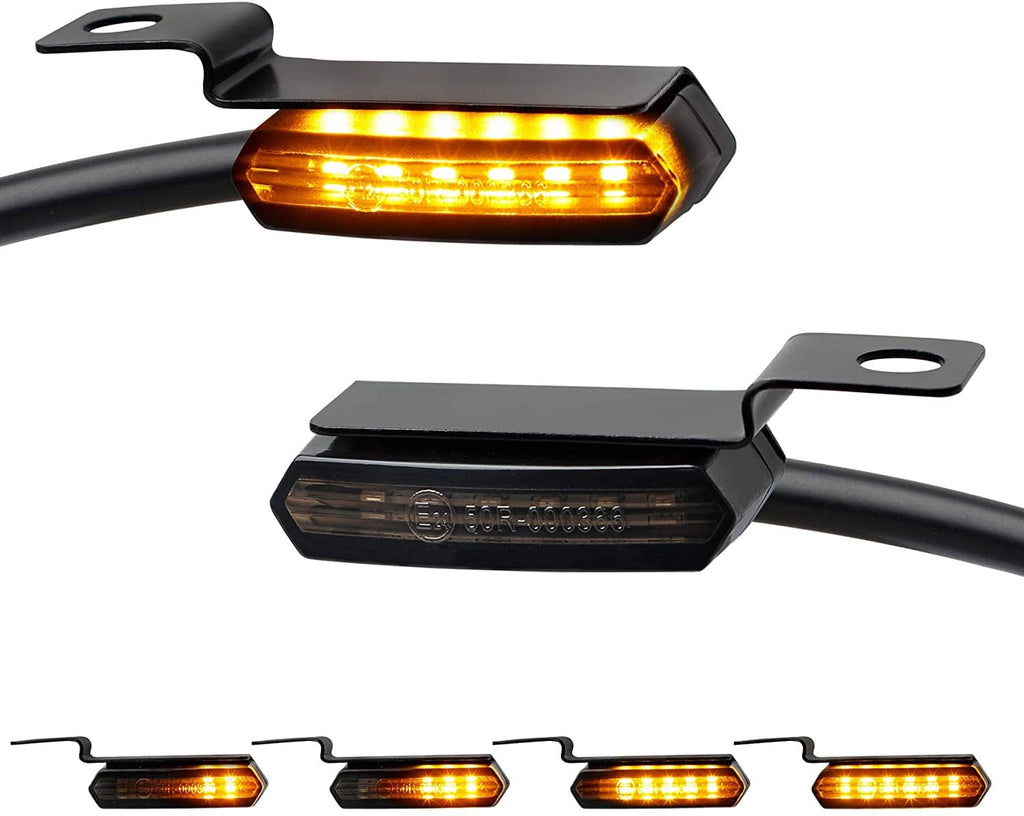

LO PROFILE FLAT TURN SIGNALS

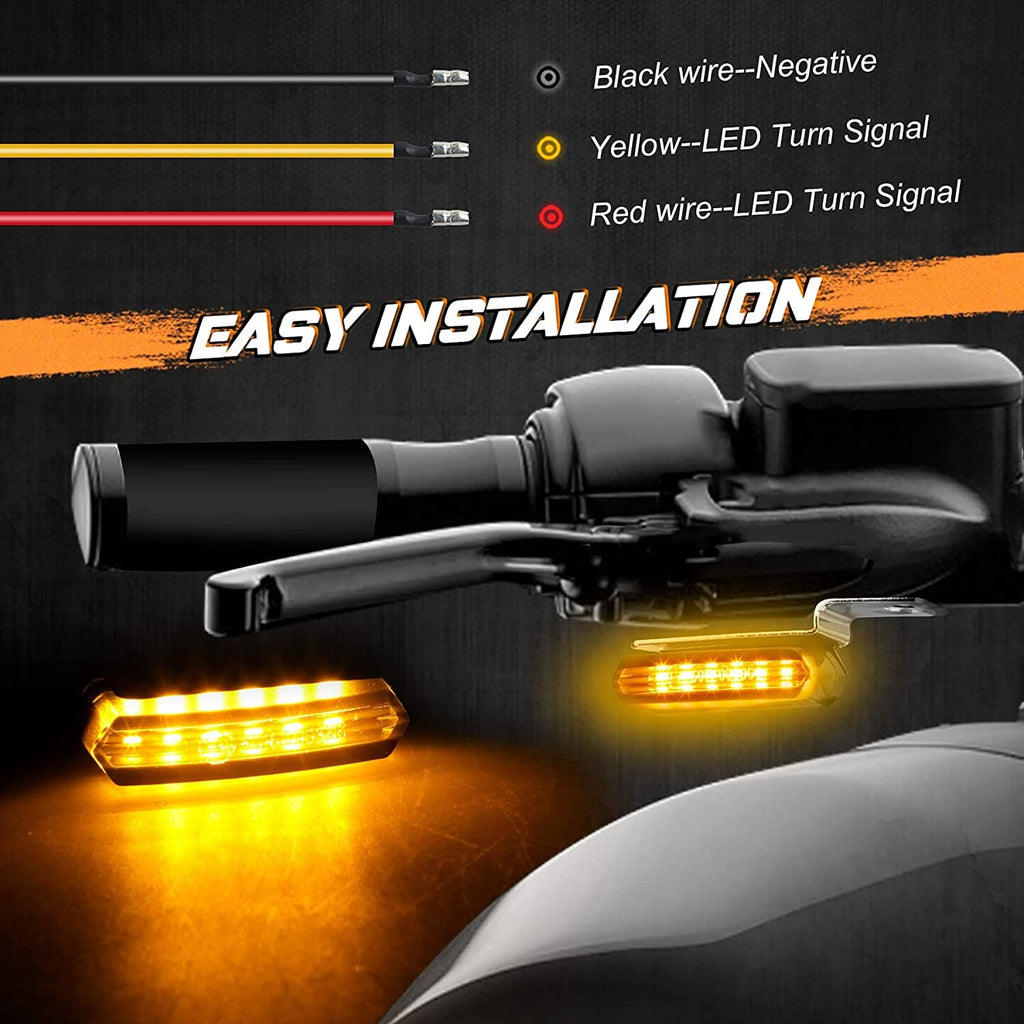

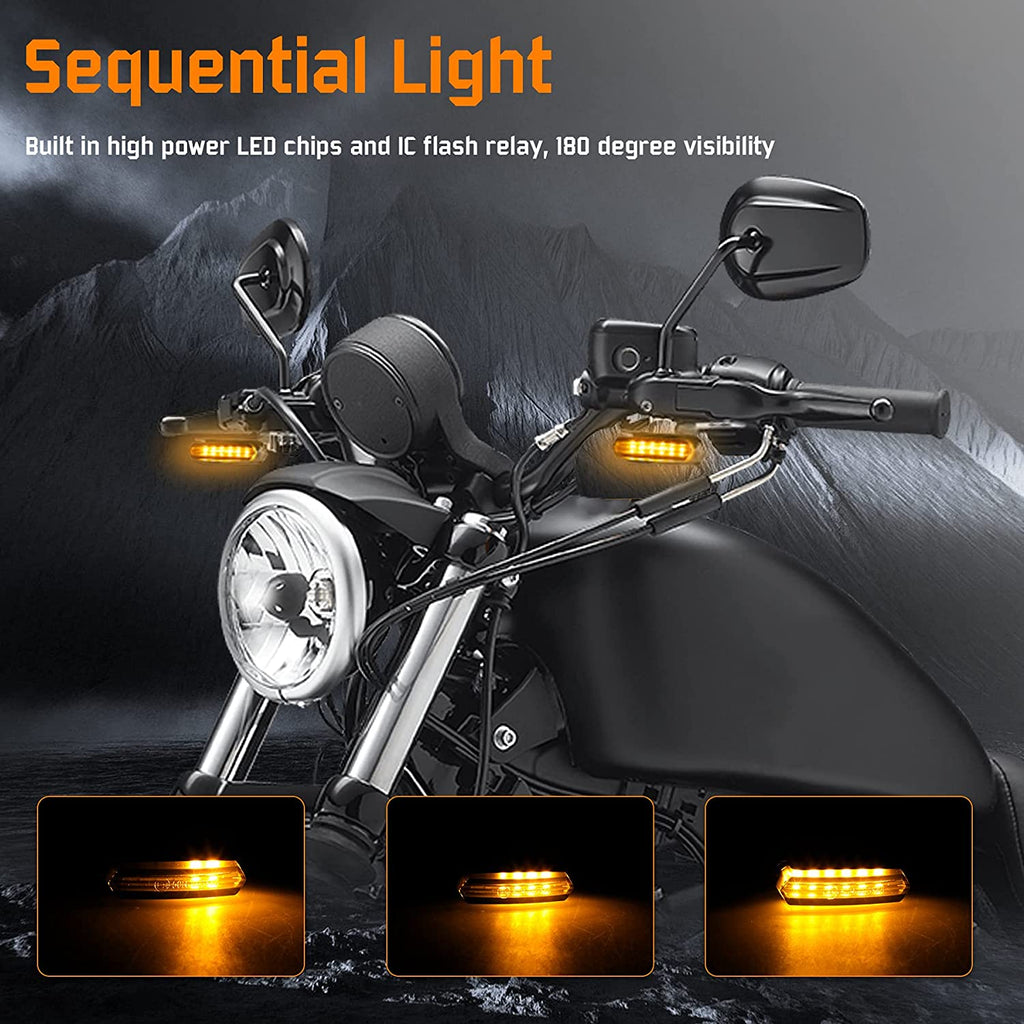

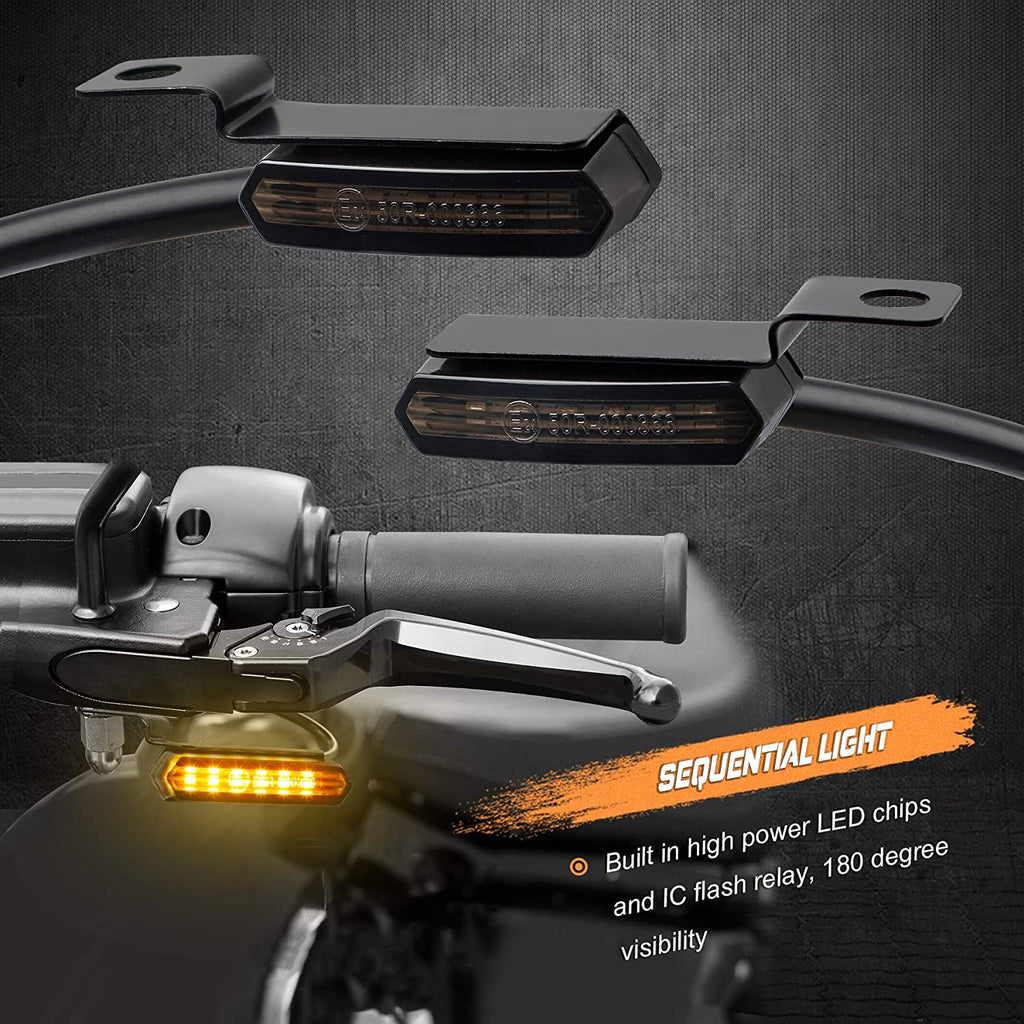

  • Sequential Light Mode - Flowing amber light for front turn signal, stylish, nice and attractive, add features to your motorcycle, enhance your motorcycle appearance. Can be mounted under the handlebar mirror. Easy wiring, black wire to ground, red wire and yellow wire to turn signals.
  • 180 Degrees of Visible Light - Provide new lighting pattern, Mini turn signal indicator built in 6 PCS LEDs, low power consumption, 99% reduce burning bulbs, energy saving. Greatly increased your visibility at night, foggy and rainy days or any extreme weather, make your driving safer.

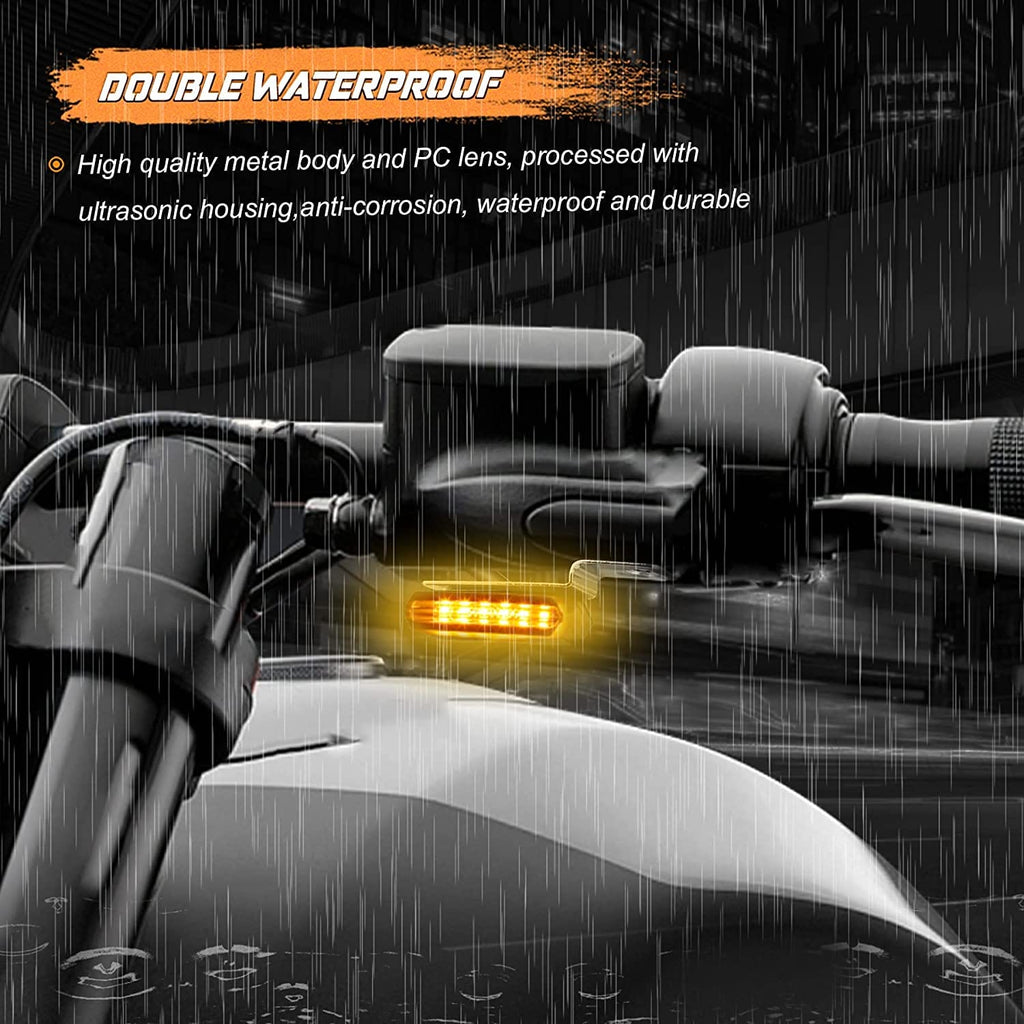

  • Waterproof & Durable - The front led turn signals made of smoked PC lens, anti-scratch and waterproof, protect led chips from water or dirt damage without weakening light, prolong the life service time. Metal bracket processed with black anodized finish, anti-oxidation, anti-corrosion.

SUPER72 NB Power Motor Modders: These can easily be connected to the optional light wiring harness. You will need to run a little wire to hook up the front ones into the harness. Note that they are designed for use without a flasher. They work fine, but the sequence will start with each flash. You can bypass the flash if you want. Never cross bare wires.

MOUNTING  OPTIONS

Examine the pictures and analyze where and how you would install these. They can flit flush against MER panniers for Super73 S-2 or the RX Short Molle Rack or be screwed into the RX fork taps.

No mounting brackets included, but we sell such hardware here

OPTIONAL: PLUG AND PLAY BATTERY TURN SIGNAL KIT.

Plug and Play turn Signal Indicator Kit for Super73 R, RX, S2, and ZX MotorBikes.  Add the plug and play battery kit to these turn signals! Kit includes:

  • FRONT and REAR Turn Signals
  • Pre-made wiring harness with black Techflex cable looming.
  • Turn Signal Switch for Handlebar

Indicators are powered by a 3000mAh battery. The switch mounted on the handlebars functions : up is right and down would be left.

Upgrade to a 6000ah battery with USB available.

We do NOT ship batteries outside the continental USA. Contact us if you want to order a kit without a battery.

SIMPLE INSTRUCTIONS FOR THIS KIT:

1. Attach the bolt-on battery box where desired. Mounts to water cage area or similar M5 tap out locations on most bikes. Use the two small holes in front of the bike to insert an allen wrench. Use the long holes to insert two small M5 bolts and attach box to frame.

2. Plug connection into battery.

3. install turn signals where desired and connect to battery connector (Yellow Plug Ends).

4. Zip tie wiring to frame. IMPORTANT: do not allow wires to hang or dangle where they can be caught in moving parts!

5. Install turn signal switch where desired on handlebars. Conventional arrangement is up/top/forward facing position = right turn and vis versa.

6. Power battery on and test! Signals will display more rightly with a full charge.

Enjoy!

For kits, the indicators are powered by a 3000mAh battery. The switch mounted on the handlebars functions : up is right and down would be left.

We do NOT ship batteries outside the continental USA. Contact us if you want to order a kit without a battery.
