K&S UNIVERSAL ROUND ALUMINUM TURN SIGNALS FOR SUPER73

  • Sale
  • Regular price $35.00
Shipping calculated at checkout.

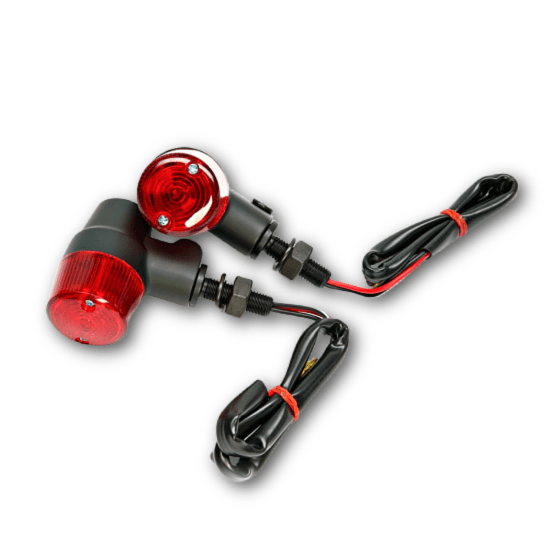

K&S Universal Round Aluminum Turn Signals FOR HONDA KAWASAKI YAMAHA KYMCO and now SUPER73

These fit well in the turn-signal holes on the S-2 and RX. To mount in the front, you will want mounting brackets of some sort. They also mount on our MER S-2 Panniers and custom fairing. They are bright, and give your bike an old school style.

MADE FROM ALUMINUM - NOT PLASTIC.

Sold raw wires in one pair.  Plug and Play kit includes two pairs (front and rear) fully wired. Allow 2 to 3 weeks for delivery of kits.

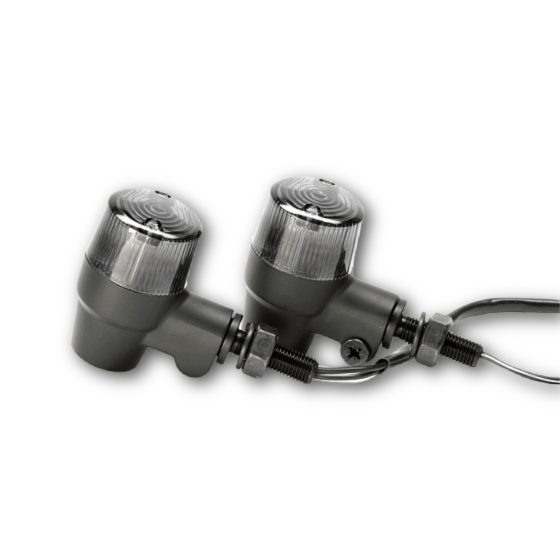

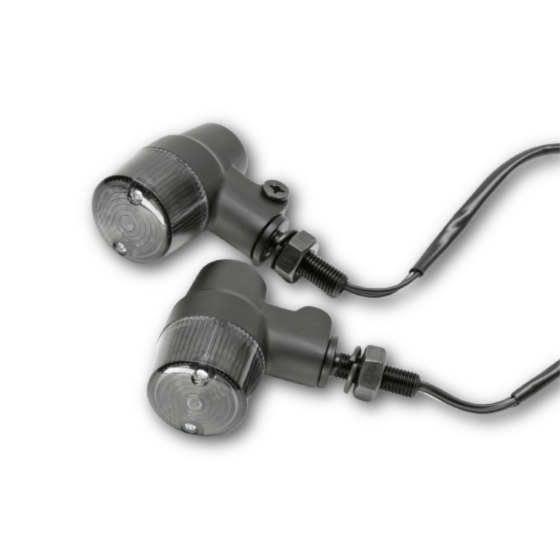

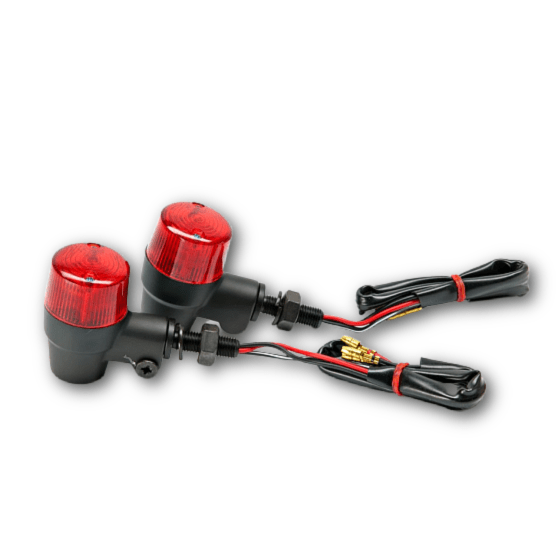

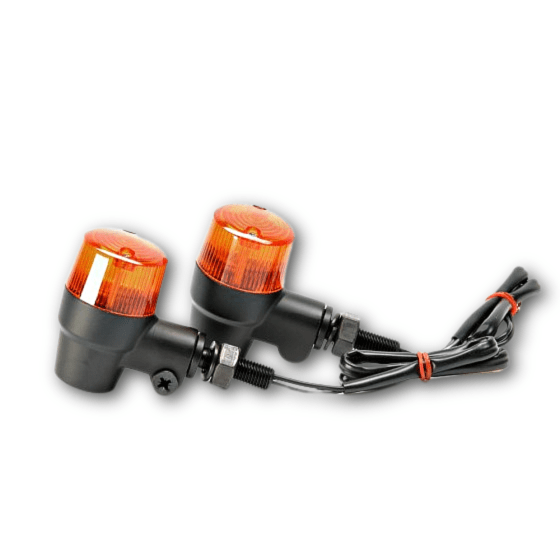

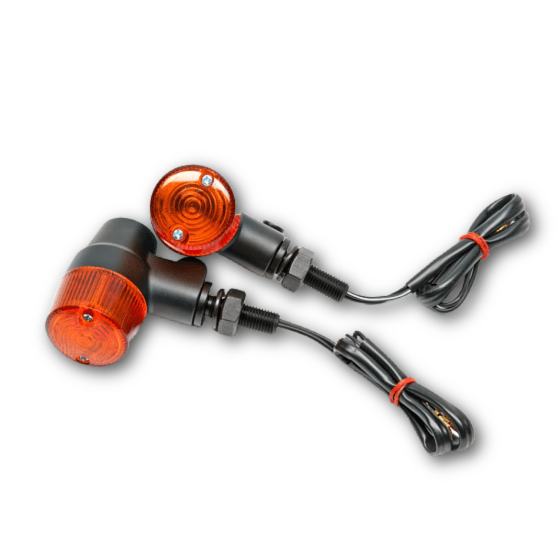

Available in Amber, Red, or Smoke Lens. Smoke Lens  with amber light.

Note to modders: flasher fuse and wiring required to make these blink. (For "Super72" modders wth an NB Power motor kit, the available light harness can hook up to these and includes a converter and a flash fuse - so the work is already done.)

OPTIONAL: PLUG AND PLAY BATTERY TURN SIGNAL KIT.

Plug and Play turn Signal Indicator Kit for Super73 R, RX, S2, and ZX MotorBikes.  Add the plug and play battery kit to these turn signals! Kit includes:

  • FRONT AND REAR Turn Signals
  • Pre-made wiring harness with flash fuse in black Techflex cable looming.
  • Turn Signal Switch for Handlebar

Indicators are powered by a 3000mAh battery. The switch mounted on the handlebars functions : up is right and down would be left.

Upgrade to a 6000ah battery with USB available.

We do NOT ship batteries outside the continental USA. Contact us if you want to order a kit without a battery.

SIMPLE INSTRUCTIONS FOR THIS KIT:

1. Attach the bolt-on battery box where desired. Mounts to water cage area or similar M5 tap out locations on most bikes. Use the two small holes in front of the bike to insert an allen wrench. Use the long holes to insert two small M5 bolts and attach box to frame.

2. Attach the small flash fuse to the battery box. The two small holes are tapped for M5.

3. Plug connection into battery.

4. install turn signals using these clamps and connect to battery connector (Yellow Plug Ends).

5. Zip tie wiring to frame. IMPORTANT: do not allow wires to hang or dangle where they can be caught in moving parts!

6. Install turn signal switch where desired on handlebars. Conventional arrangement is up/top/forward facing position = right turn and vis versa.

7. Power battery on and test! Signals will display more rightly with a full charge.

Enjoy!

IMPORTANT MOUNTING NOTE

No mounting brackets included. You will need these clamps to attach to any part of a Super73 bike. Alternatively, existing holes int he rear gusset can be opened with a drill or dremmel to fit the turn signals. The bolt is approximately 10mm wide.

This kit will work separately from your stock battery, you will simply screw on the light in the hole cut outs of the R, RX, S2 & ZX models and connect to the battery pack.

Typically, the switch mounted on the handlebars functions : up is right and down would be left.

We do NOT ship batteries outside the continental USA. Contact us if you want to order a kit without a battery.

Check out our aluminum bolt on battery box for a more heavy duty and secure battery mounting system!
